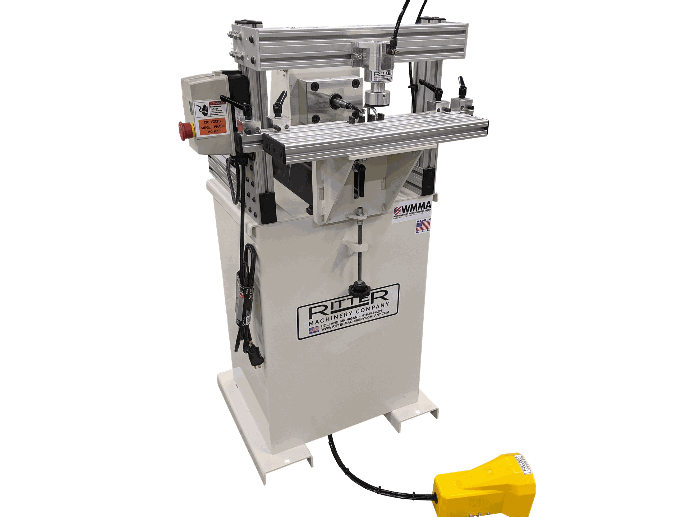

RITTER R130 Single spindle Horizontal Boring Machine

Standard Features:

• Single spindle head
• 7/16-14 Female Threaded Collet

• 0.75 HP Spindle Drive Motor, TEFC
• 0-2" Adjustable Boring Depth
• (4) Material Positioning Stops
• 2" Bore Clamping Cylinder

• Foot Actuated Boring Cycle
• 3450 RPM Spindle Speed
• 6" X 20" Table Area
• Tooling Not Included

  Description:

  Designed for a dedicated and accurate boring center with single, double or triple spindle boring capability. Stile and rail boring set-up features help eliminate costly mistakes, rejected parts and increase production efficiency. The workpiece is held firmly against the table by a pneumatic clamp, and there is full adjustability of the index stops, bed height, and depth of cut.

  Technical Data and Specifications:


  • Electrical: 110/120V, 60Hz, 10A
  • Air: 2 CFM at 80 – 100 PSI
  • Work Height: 40"
  • Footprint: 24" x 24"
