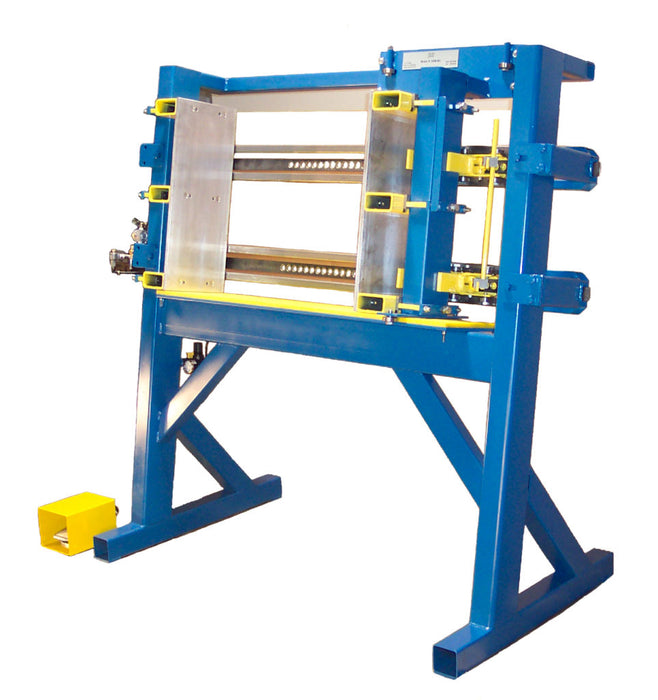

JLT - Heavy Duty Drawer Clamp 190B-M3

Pneumatic Drawer Clamp designed for Dovetail & Doweled Drawers

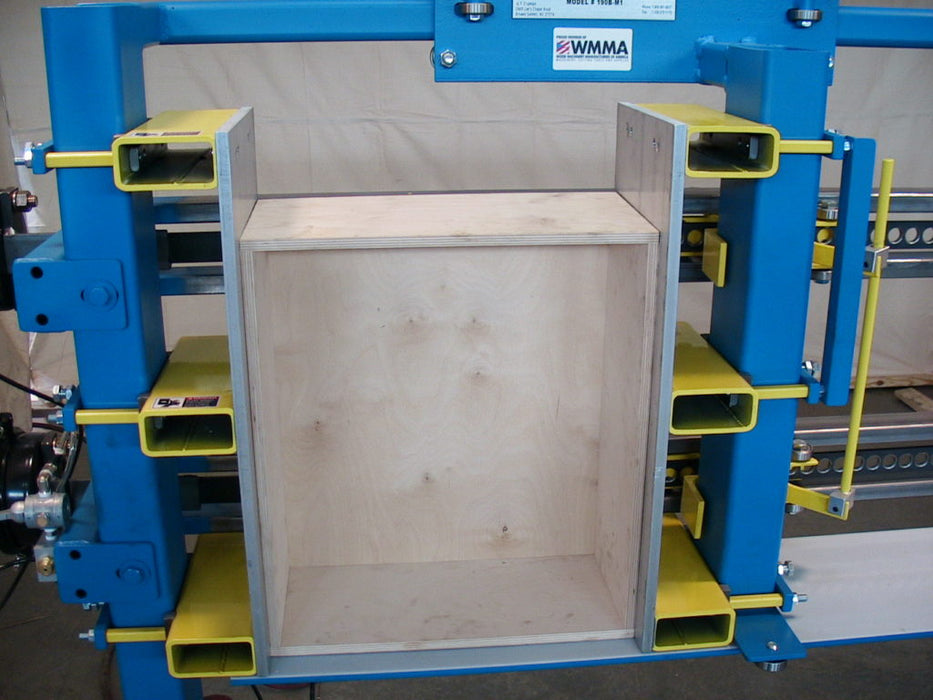

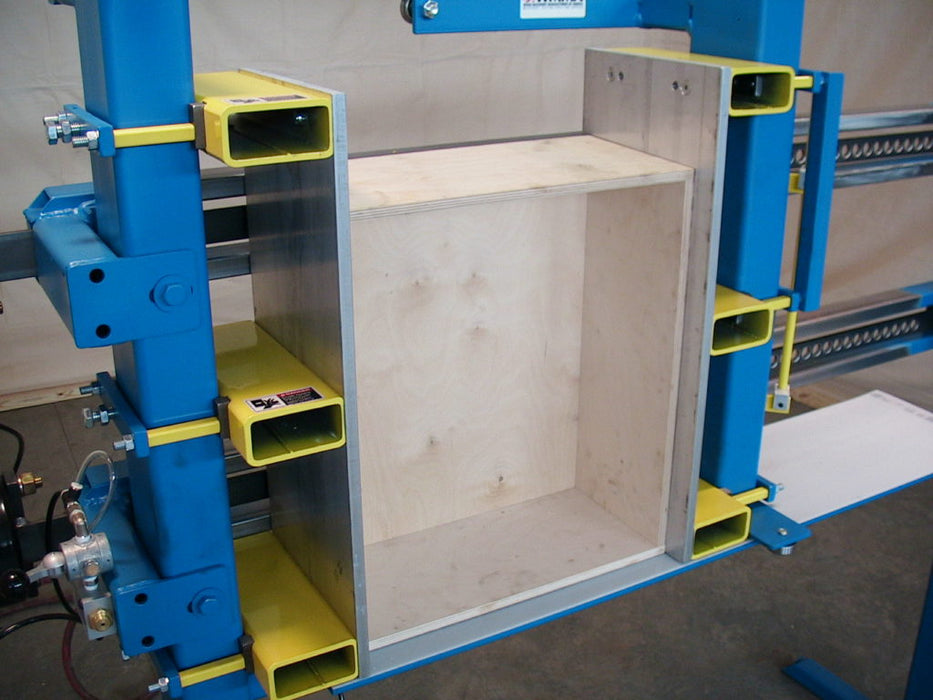

Successfully Clamp and Square both Dovetail & Doweled Drawer Boxes

Features:

• Newly designed heavy duty pneumatic drawer clamp.
• Successful clamping & squaring for Dovetail & Doweled Drawer boxes.
• 10″ x 24″ x 37″ Maximum Capacity
• Pneumatic Foot Pedal Operation
• Dual Fast Acting Horizontal Pneumatic Clamps with a 2″ Stroke.
• Aluminum Side Pressure Plates Provide a Solid, Flat Clamping Surface
• Quick Adjusting Roller Carriage Eliminates Set-up for Faster Changeovers
• Produce up to 3000# of clamping force at 100PSI.

Optional Features:

• 12″ Wide Pressure Shoes
• Larger Capacity 48″ Opening
