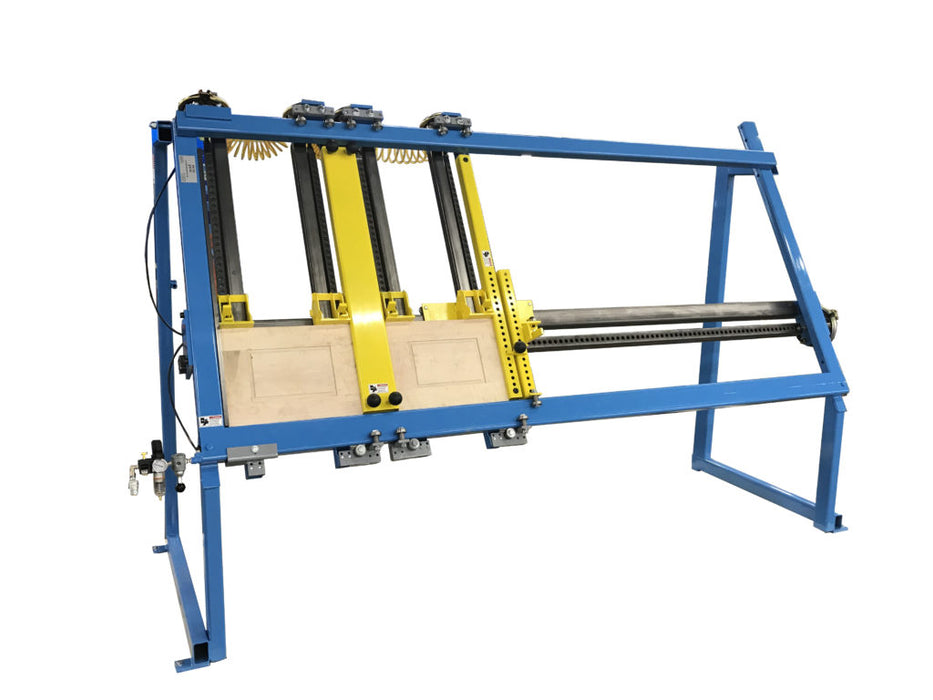

JLT - Double Door Clamp #717C-DDC

Features:

• Large Capacity and Versatile for a Wide Variety of Stile and Rail Cabinet Door Sizes.
• 38″ x 97″ Overall Capacity
• Includes (4) Vertical Clamps and (1) Horizontal Clamp (30 Sq. In Cylinder on the Horizontal Clamp)
• (2) Total Squaring Sections for Clamping and Squaring of Multiple Cabinet Doors
• Single Lever Valve Air Activation
• Faster Changeover with the Cross Clamps Adjusting in a Single Motion

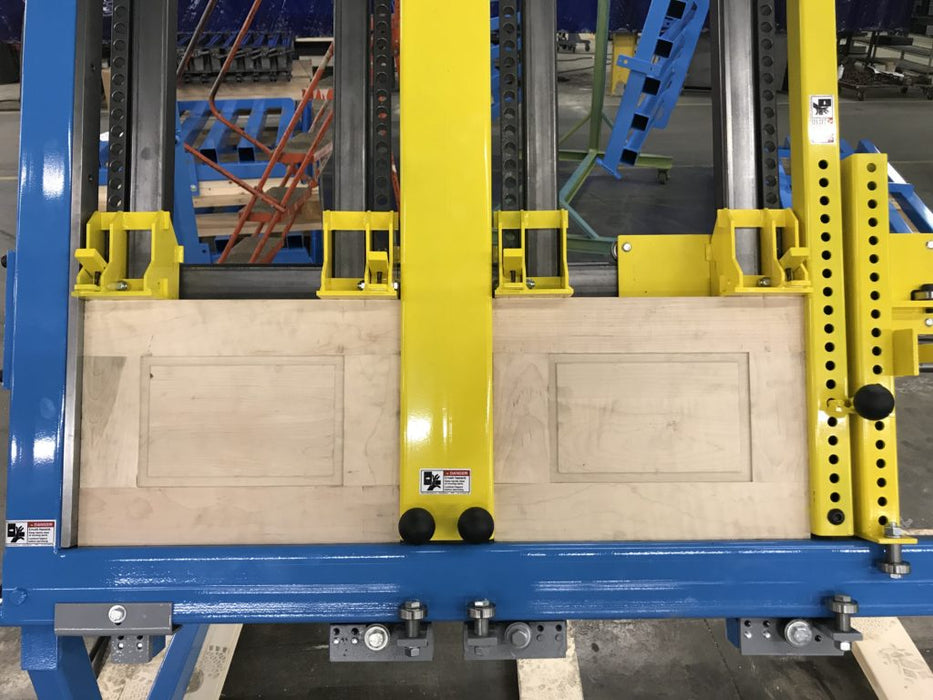

• Clamp & Square Multiple Cabinet Doors with Vertical Center Rail – (2) 38″ x 46″ Doors Side by Side Double Door Clamping.
  • Remove the center bar to utilize the maximum capacity of the clamp for larger interior doors
• 100% Heavy Duty Steel Construction.
• Convenient 60 Degree Vertical Working Angle.

Enhanced Features from the Tried & True #79K Design:

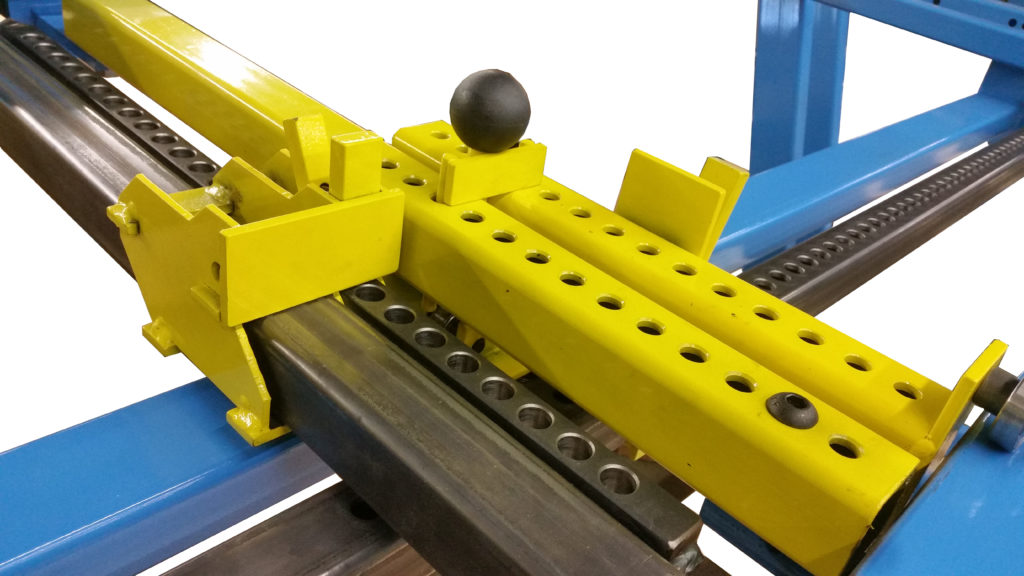

• Intuitive Pin System allows even Quicker and Easier setup than ever before.
• Cylinders Located in the back of the machine to Provide Operator with Additional Working Space.
• Redesigned Jaws with Thumb Plate for Increased Efficiency.
• Thicker Push Bars Decrease Daily Wear and Tear.
• 116in L X 70in H X 44in W
