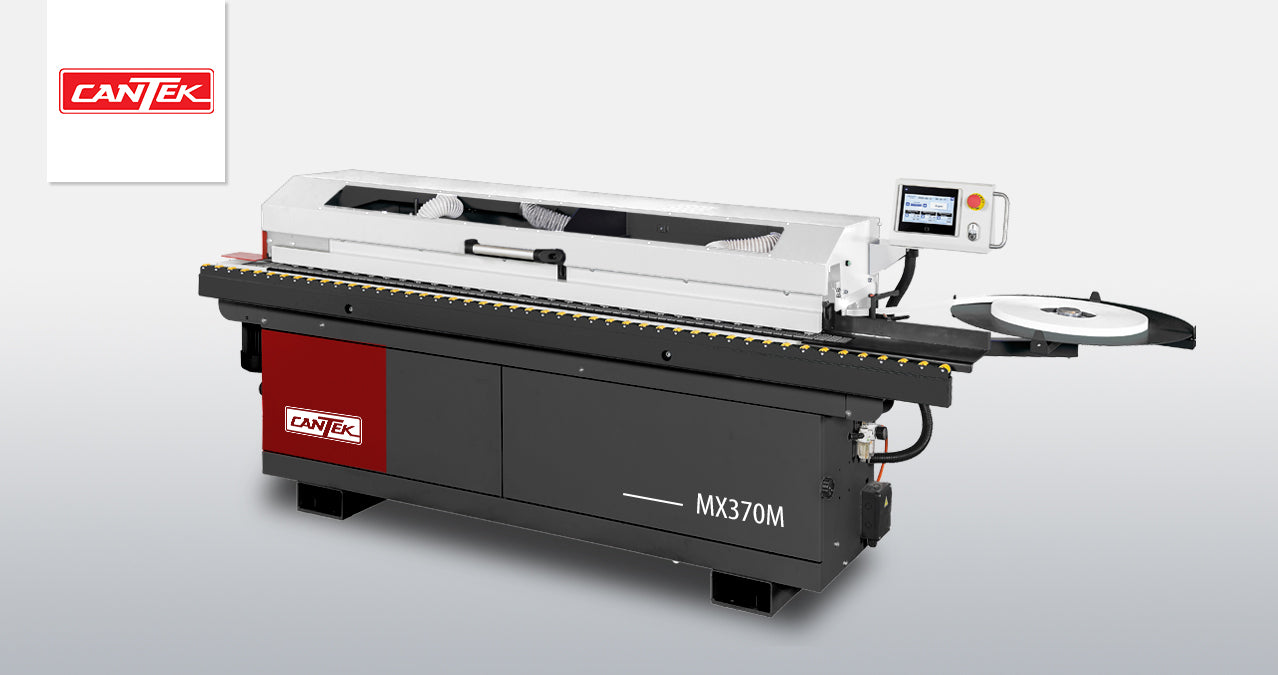

Cantek Edgebander MX370M
by Cantek
Original price
$28,200.00
-
Original price
$28,200.00
Original price
$28,200.00
$28,200.00
-
$28,200.00
Current price
$28,200.00

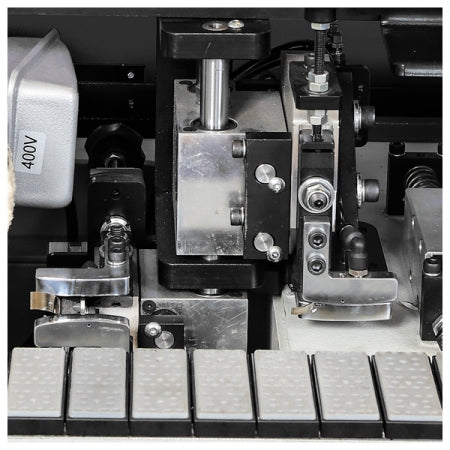

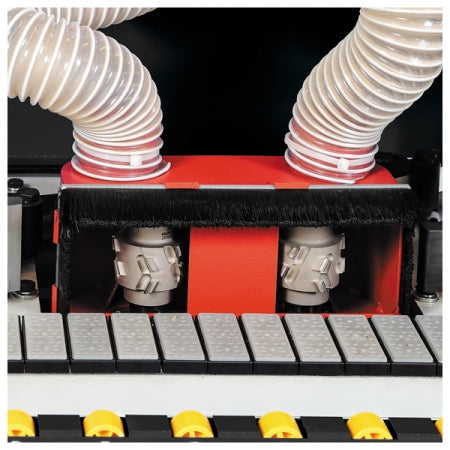

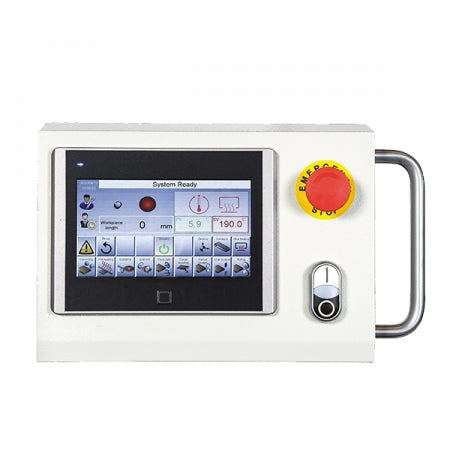

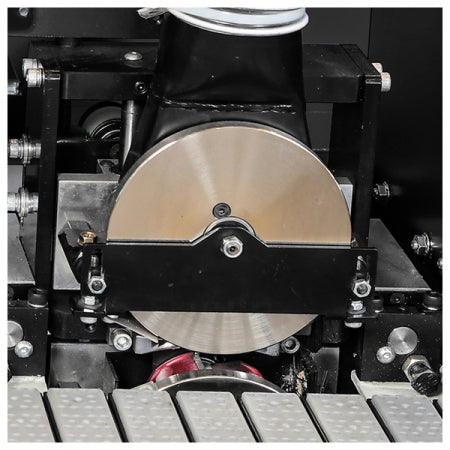

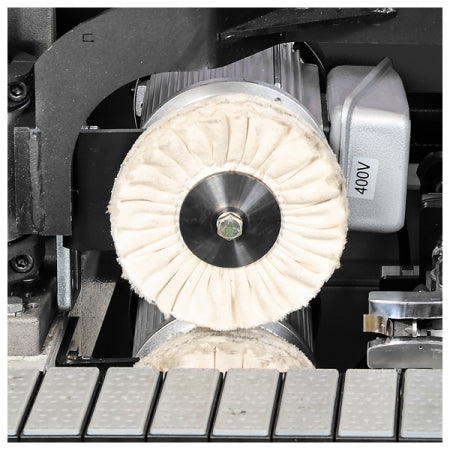

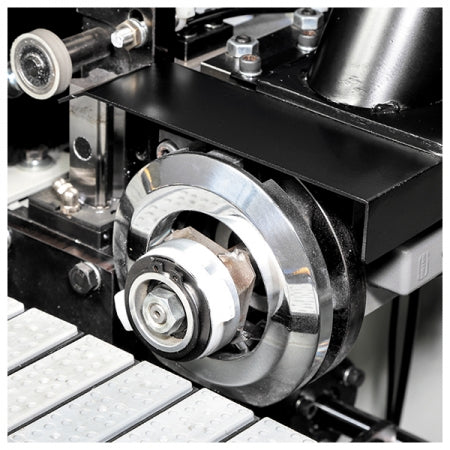

Cantek MX370M Edgebander is designed to be a compact & durable entry level edgebander with pre-milling & corner rounding functions offered at an affordable price. This machine is equipped with pre-milling, combination end trimming & corner rounding unit, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm
Feeding speed |
23 FPM |
7 m/min. |
Panel thickness |
0.472~1.77″ |
12~45 mm |
Edge thickness |
0.0158”~0.118” |
0.4 ~ 3 mm |
Minimum panel width |
3.54″ |
90mm |
Minimum panel length |
6.7″ |
170mm |
Min panel length w/ corner rounding: |
6.7″ |
170mm |
With panel height 12-30mm |
8.67″ |
220mm |
With panel height 30-45mm |
||
Working table height |
33.7″ |
856mm |
Extensible support width |
22″ |
560mm |
Extraction connection |
4” x 3 |
100mm x 3 |
Air consumption |
8.83 CFM |
250 liters/min |
Pre-milling spindle speed |
12000 RPM |
|
Top & bottom trimmer RPM |
10500 RPM |
|
End trim/corner rounding RPM |
12000 RPM |
|
Buffing RPM |
2800 RPM |
|
Max. machine dimensions (LxWXH) |
130” x 47 ¼” x 47 ¼” |
3300x1200x1200mm |
|
Electrical requirements |
230/3/60 = 19 amps |
SKU MX370M
