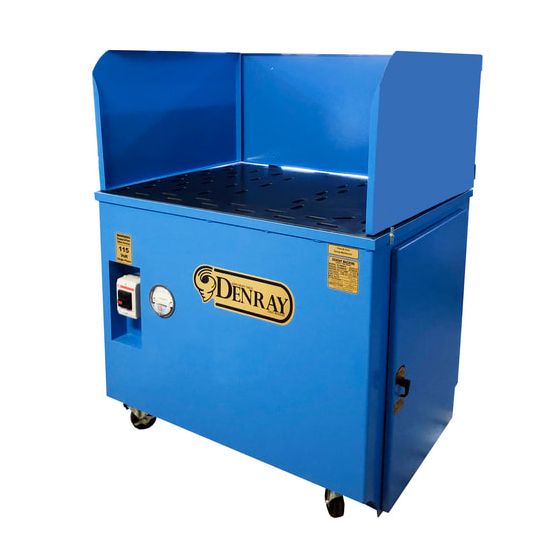

Denray 3644CG Metal Downdraft Table

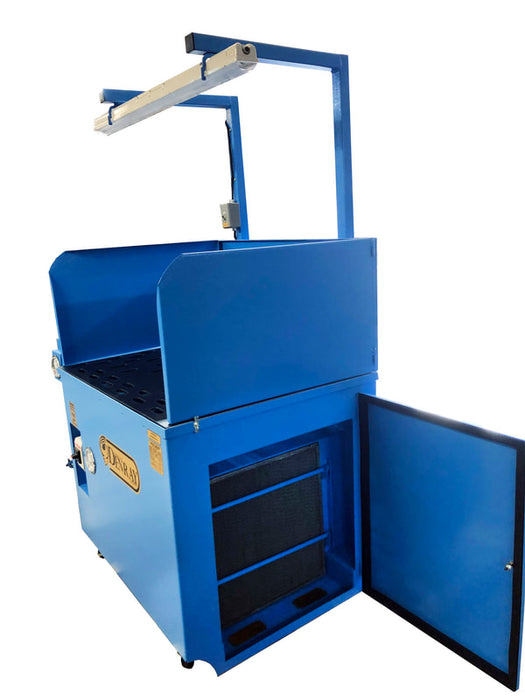

Denray has designed a table for the budget minded company. This unit is designed for TIG welding and most MIG welding applications. With 3 stages of filters, first a 2" thick steel mesh spark arresting filter (cleanable), second a 4" Merv 8 pre-filter that will stop the majority of particles, and third a 4" Merv 13 main filter to capture the fine particles produced by welding smoke. Due to the lower cost of these filters most companies will dispose of these when the Magnehelic gauge shows they are plugged. The filters are easily accessible, reducing operator down time, allowing more time for production. This model also comes standard with casters, 1/4" metal plate top and removable 3-sided hinged spark shield.

• 36" x 44"   Table
• 36" HEIGHT
• 2 HP MOTOR
• 16.5" FAN
• 2700 CFM78 DECIBELS SOUND LEVEL
• CASTERS
